Bikes Enduro Megawatt CRB Megawatt
The assembly of the product may differ from the photo. Be sure to check out the specifications.*

Megawatt

Megawatt CRB Pro T-GX MWC01As(M)

  • S
  • M
  • L
  • XL
  • XXL
What is my size?
€8,999.00
Checkout is not available in your country. Contact your local dealer to order

Optimized Geometry for Ultimate Control

SRAM Eagle Powertrain

Race-Proven Development

About Megawatt

The Megawatt Carbon is a mixed-wheel PRO E-Enduro bike built on our race-winning Mega platform, featuring 170mm of travel both front and rear.

This design has been refined for over a decade to deliver a ride that’s poppy yet stable, high-tech yet simple. The Megawatt Carbon was developed over two years as the test bed for SRAM’s groundbreaking Eagle Powertrain.

This integrated e-bike ecosystem seamlessly combines SRAM’s Eagle AXS Transmission with a revolutionary new drive system, giving Nukeproof engineers the chance to tailor-make the Megawatt Carbon to fit the SRAM system like a glove.
Megawatt

Optimized Geometry for Ultimate Control

The Megawatt Carbon’s geometry strikes the perfect balance between stability and agility. While the rear linkage remains largely unchanged from the previous Megawatt model, subtle refinements ensure the suspension is supple on small bumps and supportive on bigger hits. This creates a ride that is both playful and planted, giving riders confidence in technical terrain.
Optimized Geometry for Ultimate Control

SRAM Eagle Powertrain

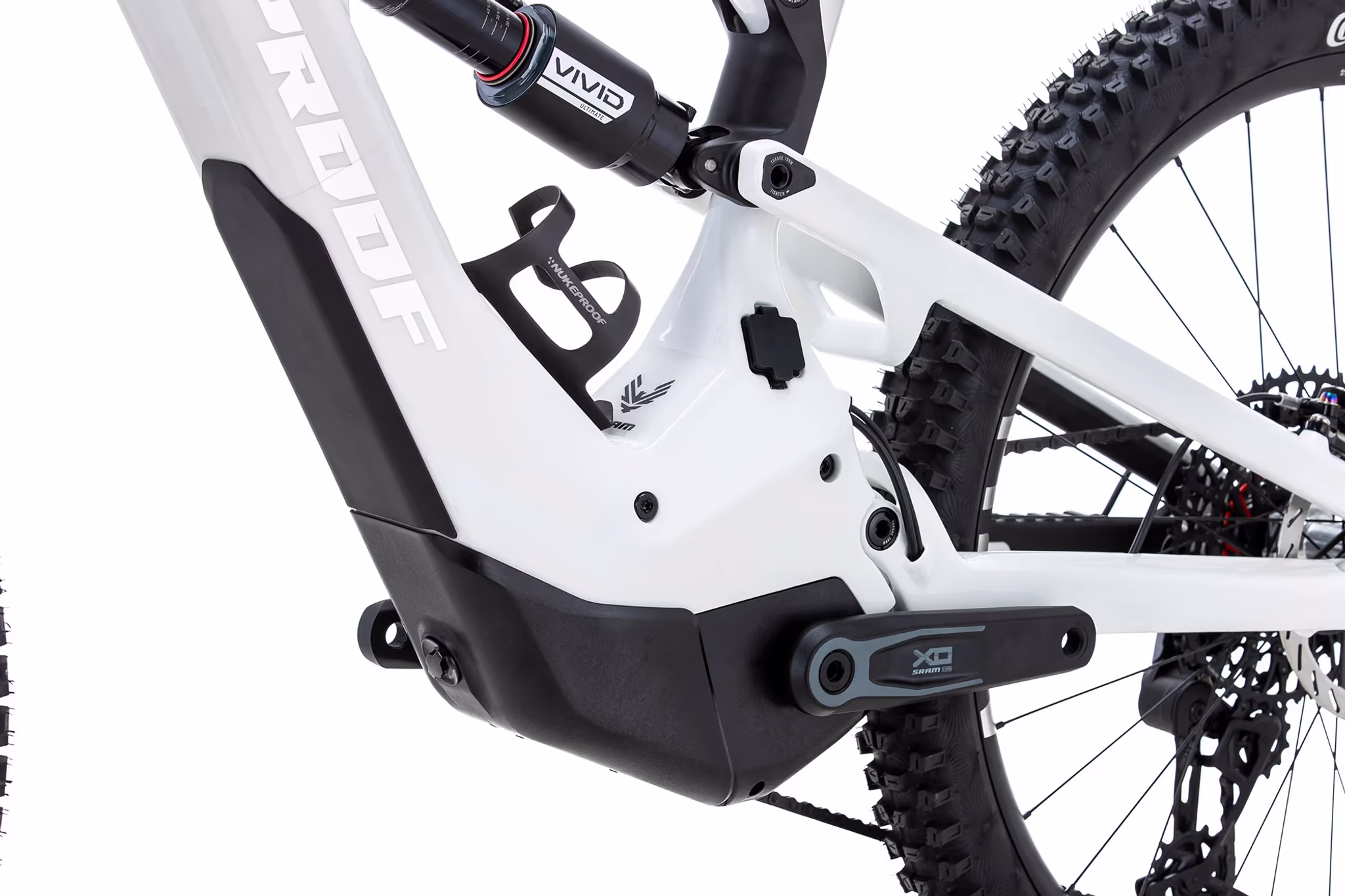

At the heart of the Megawatt Carbon is the all-new SRAM Eagle Powertrain. This system delivers 90Nm of torque through a powerful drive unit, backed by a 720Wh battery. It seamlessly integrates with the Eagle Transmission and AXS wireless shifting, creating a cohesive and intuitive riding experience.

Key features include Autoshift, which allows the bike to shift gears automatically to maximize motor function, and Coastshift, enabling riders to change gears without pedaling—eliminating the common issue of gear mashing when a descent quickly turns into a climb.
SRAM Eagle Powertrain

Race-Proven Development

The Megawatt Carbon was rigorously tested through the E-Enduro World Series with the Nukeproof-SRAM Factory Racing team and the SRAM BlackBox race team, proving itself in some of the most demanding conditions on the planet.
Race-Proven Development

Specifications

  • Frame
    megawatt_crb
  • Material
    Carbon
  • Frame Level
    Elite Series
  • Fork
    RockShox Zeb Select +, Charger 3.1 RC2, 170mm, 44mm Offset, BOOST, Debonair, Black
  • Rear Shock
    RockShox Vivid Select +, TouchDown RCT Damper, R25 Rebound, C30 Compression, 4X Lockout, Custom Tuned BS C C1, 230x65mm
  • Drive Unit
    SRAM Eagle Powertrain Drive Unit, 250W, 90NM
  • Battery
    SRAM Eagle Powertrain Full Size, 720WH
  • Groupset
    Sram Transmission GX
  • Rear Derailleur
    SRAM Transmission GX Rear Derailleur
  • Crank Arm
    Sram GX Eagle E-MTB, 36T
  • Cassette
    SRAM Transmission GX 10-52T
  • Brake Type
    Post Mount
  • Wheelset
    DT Swiss HX1700, 29"-27,5", 30mm internal
  • Outer Tyre
    SCHWALBE MAGIC MARY 63-622 / ALBERT 63-584 Evo, GRAVITY PRO, TLR
  • Handlebar
    Nukeproof Horizon Carbon V2, S/M: 12mm Rise Width - 780mm, L/XL/XXL: 25mm Rise Width - 800mm
  • Stem
    Nukeproof Horizon, 45mm, Black
  • Seatpost
    RockShox Reverb AXS, SM: 125mm, M: 150mm, L/XL/XXL: 170mm
  • Saddle
    Nukeproof Horizon Enduro
  • Range
    Enduro

Geometry

What is my size?

SMALL MEDIUM LARGE X-LARGE XX-LARGE
A 435 455 475 495 515
B 624.29 633.25 642.19 651.14 660.09
C 573.4 595.39 611.5 633.4 655.31
D 380 410 440 460 480
E 77.5° 77.5° 78° 78° 78°
F 71° 71° 72° 72° 72°
G 650 700 750 800 850
H 140.84 157.22 165.52 181.03 196.54
I 100 110 120 130 140
J 63.5 63.5 63.5 63.5 63.5
K 447 447 447 447 447
L 778.23 802.69 827.16 851.62 876.08
M 1225.28 1249.74 1274.04 1298.51 1322.97
N 3 3 3 3 3
O 348.50 348.50 348.50 348.50 348.50
P 737.33 737.33 742.87 742.87 748.19
Q 170 170 170 170 170
R 130.26 130.26 130.26 130.26 130.26
S 44 44 44 44 44
T 582 582 582 582 582
U 216 248 275 305 340

Let us inspire you!

Can’t decide between a few colors or designs? Would you like to see a certain design in more detail? Then check out some of these cool designs, selected to help you choose. Let us inspire you!

+ 1 photos

Help & support

How can we help?

Exploded Diagram, Torque, Grease, Theadlock and Cable Routing Diagrams

Download Exploded Diagram, Torque, Grease, Theadlock and Cable Routing Diagrams here

Megawatt Carbon User Manual
